SuperTie™ Patented Gripper and Smooth Rod Series
SSuperTie™ patented gripper is used with RJD fiberglass wall form tie rod to secure concrete formwork during concrete placement and initial hydration, without the inherent limitations of previously popular steel form-tie systems. SuperTie™ systems eliminates the possibility of rust stains, as well as the deterioration often caused by failure of patching steel form-tie holes.

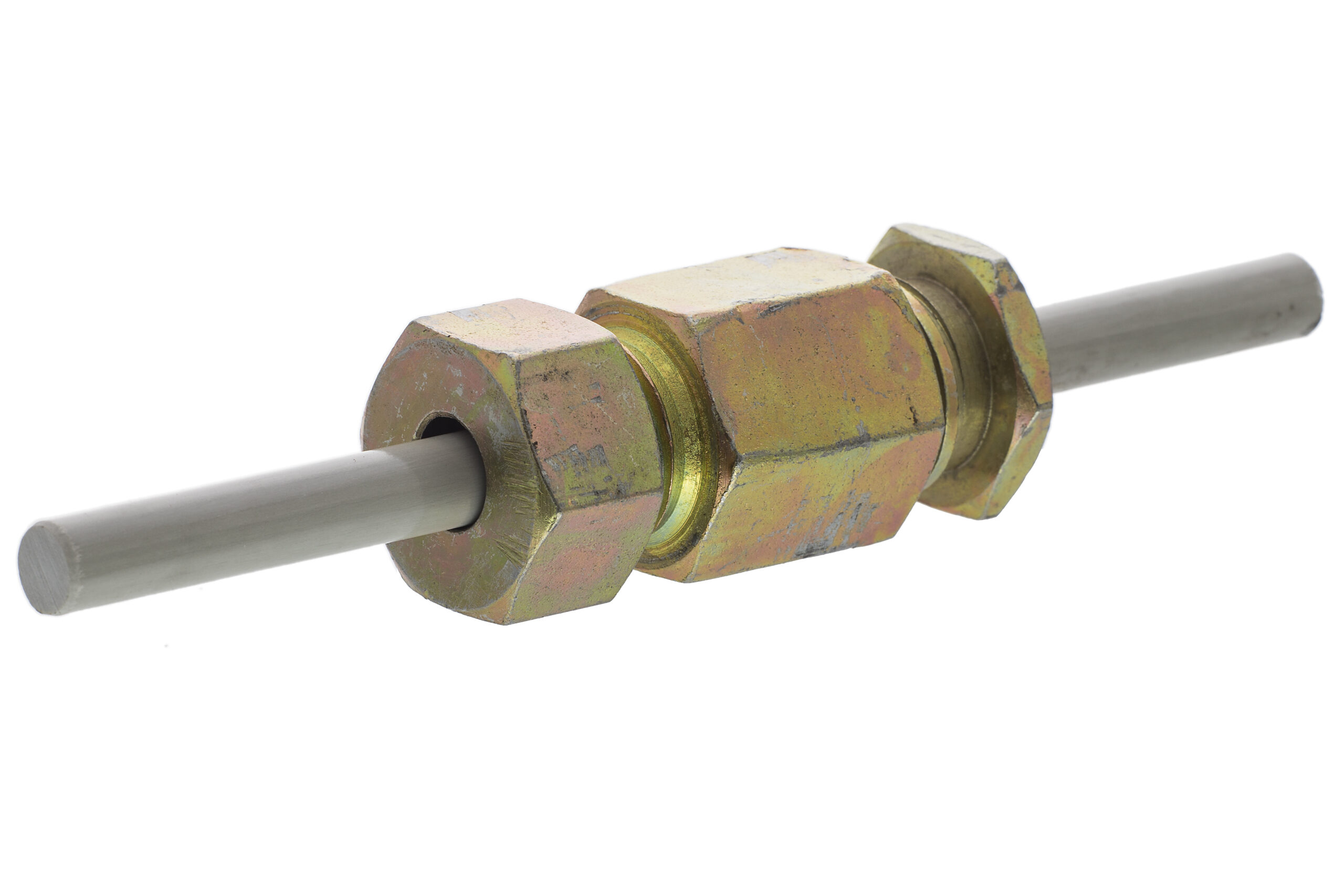

SuperTie™ GND15000 and R15 (.500 Rod)
SuperTie™ R15 Patented Gripper System offers a 7,000 safe working load. This system’s greater strength makes it attractive to those who need heavier forms and higher concrete placement rates.
US Patent #7,819,388
Bearing Plate BP615
The Bearing Plate is a required component with the SuperTie™ Gripper. BP615 is a 4”x4” steel plate and fits the R6 and R15 systems.

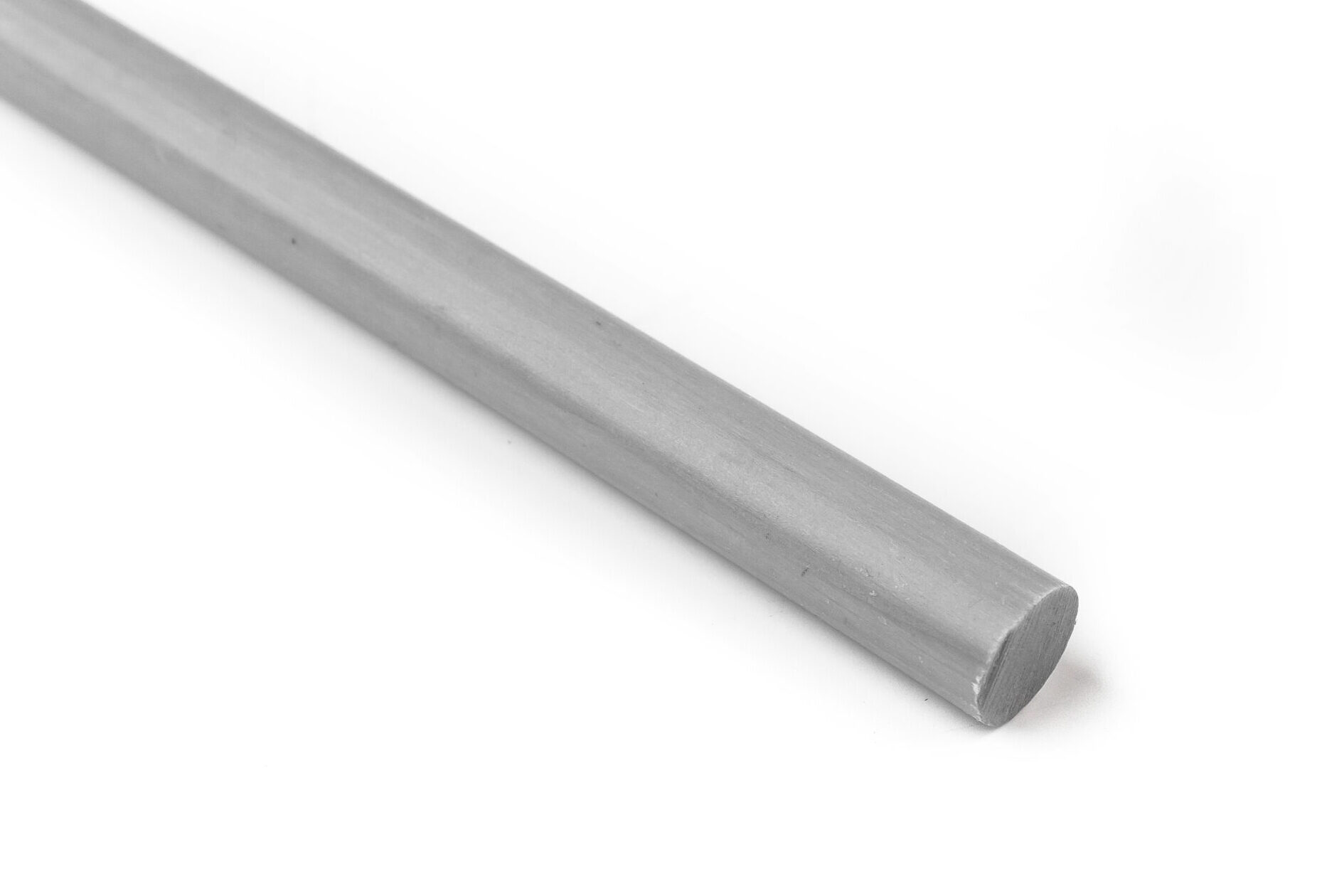

Non-Corrosive Fiberglass Coil Rod (0.50”)
RJD Fiberglass R15 Smooth Rod will never rust, eliminating the need for break-back, plugging, and patching and allowing for superior architectural finishes. RJD Fiberglass Smooth Rod R15 System (.500) is the preferred choice for higher strength applications.
**Only use RJD engineered rod with RJD grippers; failure to do so could result in form failure and/or injury.**
COMPONENT LIST
| PRODUCT # | DESCRIPTION | PACKAGING | SHIP WT |
|---|---|---|---|
| R15/20G | R15 rod, 20′ lengths, grey color |
18 per bundle (total 360 feet) |
70 lbs. |
| GND15000 | Gripper | 50 per bucket | 55 lbs. |
| BP615 | Bearing Plate | 50 per box | 55 lbs. |
| SC15000 | SpreaderClip™ | 50 per box | 11 oz. |
| WS15000 | WaterStop™ | 50 per bag | 15.5 oz. |
For custom rod lengths, please call for quote and lead times.
When determining tie spacings, refer to guidelines in ACI 347R-14. All formwork load calculations shall be preformed by a qualified engineer. Failure to do so may result in form failure or injury.
SuperTie™ Systems are sold exclusively through quality construction materials dealers. Call for the name of the dealer nearest you.
